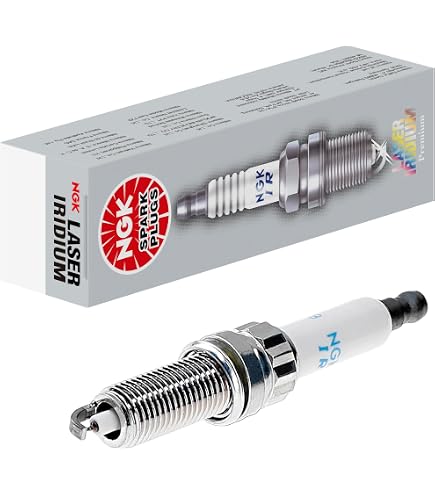

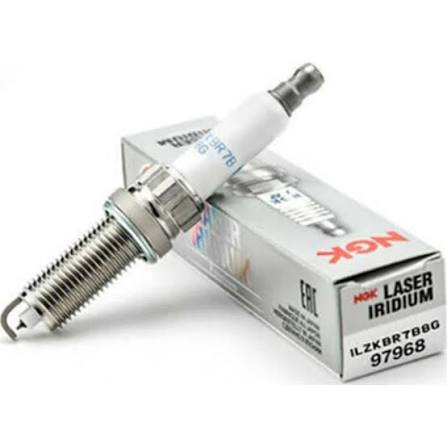

NGK Laser Iridium Spark Plug — ILZKBR7B8G (97968)— OEM Quality (Pack of 4)
OEM Part Numbers
• 12120035531 (BMW)
• 12120035933 (BMW)
• 12 12 2 158 165 (BMW)
Cross Reference / Analogs original part number
| Brand | Cross Reference Part Number |
|---|---|
| BMW | 0 035 531 |
| BMW | 12 12 0 035 531 |
| BMW | 12 12 7 570 106 |
| BMW | 12 12 7 570 106.02 |
| BMW | 7 570 106 |
| BMW | 7 570 106.02 |
| CITROËN | 5960.L5 |
| CITROËN | V7 570 106 80 |
| CITROËN | 16 54 517 280 |
| MINI | 0 035 531 |
| MINI | 12 12 0 035 531 |
| MINI | 12 12 7 570 106 |
| MINI | 12 12 7 570 106.02 |
| MINI | 7 570 106 |
| MINI | 7 570 106.02 |
| PEUGEOT | 5960.L5 |
| PEUGEOT | V7 570 106 80 |
| PEUGEOT | 16 54 517 280 |
Cross Reference / Analogs
| Brand | Part Number | Type / Note |
|---|---|---|
| NGK | ILZKBR7B8G / 97968 | Original Laser Iridium spark plug |
| BMW / MINI OEM | 12 12 7 570 106 | OE cross-reference |
| BMW / MINI OEM | 12 12 0 035 531 | OE cross-reference |
| CITROËN / PEUGEOT | 5960.L5 | OE cross-reference |
| CITROËN / PEUGEOT | V7 570 106 80 | OE cross-reference |
| CITROËN / PEUGEOT | 16 54 517 280 | OE cross-reference |
| BOSCH | 0 242 145 518 | Iridium spark plug equivalent |
| DENSO | IXEH22TT | Iridium TT spark plug |
| DENSO | VKH22 | Iridium Tough spark plug |
| BERU | Z347 | Iridium spark plug |
| CHAMPION | OE207 | Iridium / premium spark plug |
| HELLA | 8EH 188 706-061 | Spark plug replacement |
| FEBI BILSTEIN | 13432 | Spark plug equivalent |
| EYQUEM | RFC58LZ2E | Spark plug replacement |
Vehicle Fitment Table (OEM Compatibility)
Important Fitment Notes:
• Torque Specification – For N54 applications, torque to 23 ± 3 Nm (~17 ft-lb) .
• Gap – The pre-gap is 0.75–0.8 mm; set to 0.56 mm (0.022″) for N54 engines .
• Anti-Seize – NGK recommends against using anti-seize compound; the trivalent metal plating already provides corrosion protection .
• Not for Diesel – Designed for high-performance petrol engines only.
• Cross-Reference – Replaces old NGK part number 95770 (ILZKBR7B8DG) .
Condition
New
Product Type
Laser Iridium Spark Plug
Function
The spark plug ignites the air-fuel mixture in the combustion chamber. The fine wire iridium center electrode ensures a consistently stable spark, while the platinum ground electrode provides even wear for long service life .
Technical Specifications
| Brand | NGK |
|---|---|
| Part Number | ILZKBR7B8G |
| Stock Number | 97968 |
| Thread Size | M12 × 1.25 |
| Reach | 26.5 mm (1.043 in) |
| Hex Size | 14 mm Bi-Hex |
| Seat Type | Flat / Gasket |
| Pre-Gap | 0.75–0.8 mm |
| Heat Range | 7 |
| Center Electrode | Iridium (Fine Wire) |
| Ground Electrode | Platinum (Standard) |
| Resistor | Yes (5 kΩ) |
| Center Electrode Core | Copper |
| Terminal Type | Non-Removable Nut |
| Condition | New |
Warranty
NGK's manufacturer warranty applies (60-day warranty via most retailers) . For claims, please contact the place of purchase.
